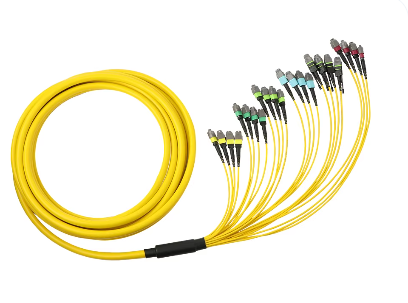

Single Mode 144 Core MPO-MPO Fiber Trunk Cable

Name: Single Mode 144 Core MPOMPO Fiber Trunk Cable
Brand: Unifiber or OEM
Price: 1 USD

China Single Mode 144 Core MPO-MPO Fiber Trunk Cable wholesale

Model Number : 144 Core MPO-MPO Fiber Trunk Cable

Price : Negotiable

Connector : MPO-12F

Supply Ability : 1000pcs/day

Product : 144 Core MPO-MPO Fiber Trunk Cable

Brand Name : Unifiber or OEM

Payment Terms : L/C, T/T

Fiber Counts : 144 Fiber

Polarity : B

MOQ : 1

Delivery Time : 5~8days

Application : Data Center

Certification : ROHS

Packaging Details : Carton

Fiber Type : SM

Place of Origin : CHINA

Contact Now

Single Mode 144 Core MPO-MPO Fiber Trunk Cable

MPO-MPO Fiber Trunk Cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high-fiber environments, reducing network installation or reconfiguration time and cost.

Key Features

100% pre-terminated and factory tested to ensure optimal transfer performance
Rapid configuration and networking reduces installation time
Supports 40G and 100G network applications
Available jacket materials: LSZH, OFNR, OFNP
Supports up to 12F, 24F, 48F, 72F, 96F, 144F configurations
Customized products available upon request

Applications

Data communication networks
Optical system access networks
Storage area networking fiber channel
High-density architectures

Technical Specifications

Performance Level	Standard	Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
MPO/MTP	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	UPC	≤0.30	≥60	≤0.10	≥60
LC/SC/FC/ST	SM	PC	≤0.20	≥50	≤0.10	≥50
LC/SC/FC/ST	MM	PC	≤0.20	≥30	≤0.10	≥30

Single Mode 144 Core MPO-MPO Fiber Trunk Cable

Product Tags:

Single Mode MPO fiber trunk cable

144 core MPO-MPO cable

MPO-MTP patch cord with warranty

Single Mode 144 Core MPO-MPO Fiber Trunk Cable Images
